Examples


broeke	An implementation of the model described in ten Broeke, Guus, George van Voorn, and Arend Ligtenberg.
costanza	Basic example for testing goodness-of-fit.
daisy	Daisyworld example using multiple Runs factorial strategy.
fire-average	Fire in the forest example using multiple runs repeateated strategy.
moving-agents	Example that uses MultipleRuns to compute wow many cells agents moving randomly can reach.
sir-mr-campaign	Multiple simulations of a Susceptible-Infected-Recovered (SIR) model with a public campaign.
sir-mr-probability	Investigating the probability of infection in a Susceptible-Infected-Recovered (SIR) model.
sir-samde-fit	Infection example using SaMDE, simulates an infection spreading inside a school.
sir-samde-max-infected	An example of a bad calibration.

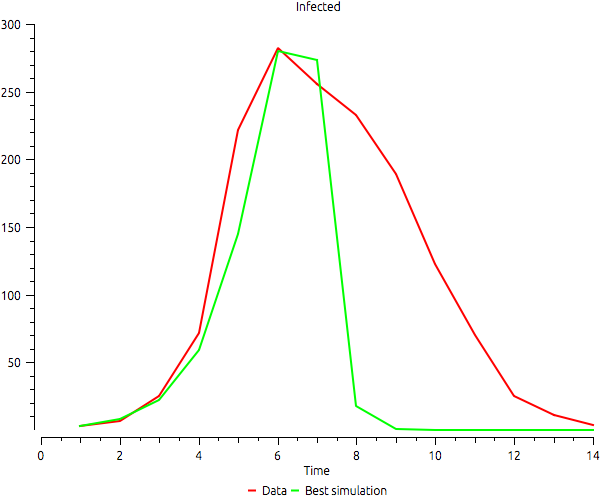

sir-samde-point	Calibration of a SIR model using a single point.

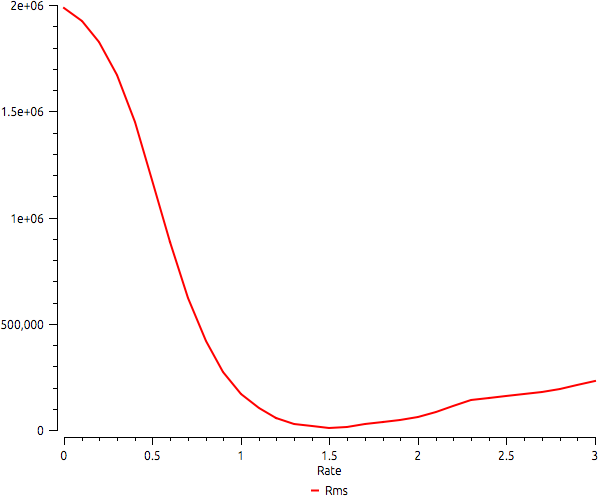

yeast-mr	Basic example for testing MultipleRuns using Yeast model.

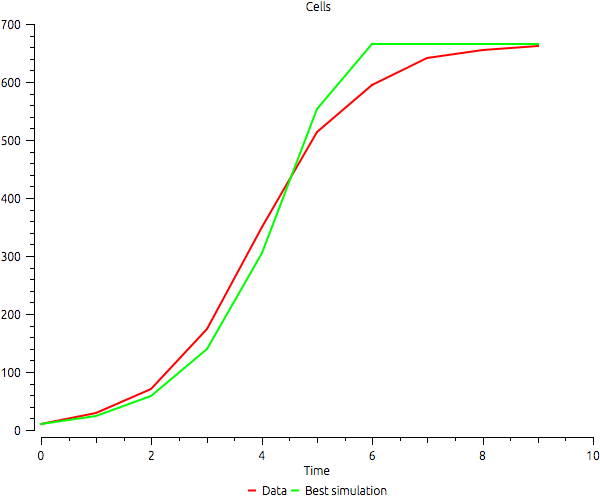

yeast-samde	Basic example for SAMDE using Yeast model.

broeke

An implementation of the model described in ten Broeke, Guus, George van Voorn, and Arend Ligtenberg. "Which Sensitivity Analysis Method Should I Use for My Agent-Based Model?." Journal of Artificial Societies & Social Simulation 19.1 (2016). http://jasss.soc.surrey.ac.uk/19/1/5.html.

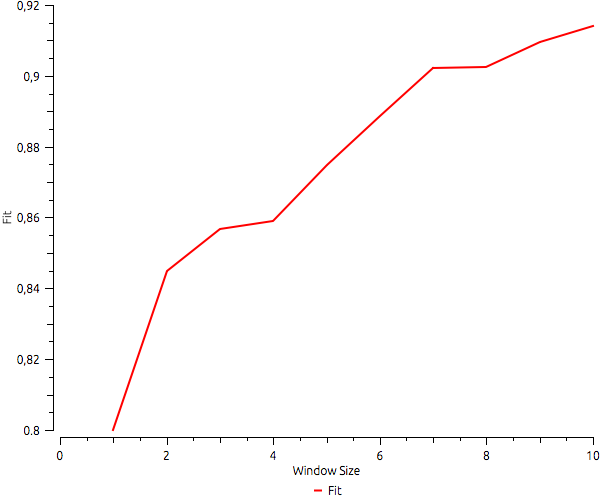

costanza

Basic example for testing goodness-of-fit. This example reproduces Figure 4 of from Costanza R. Model goodness of fit: a multiple resolution procedure. Ecological modelling. 1989 Sep 15;47(3-4):199-215.

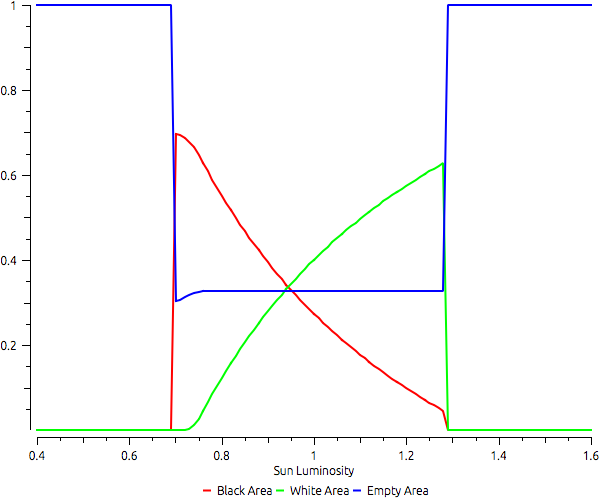

daisy

Daisyworld example using multiple Runs factorial strategy. It simulates Daisyworld using different sun luminosities to investigate the final distribution of black, white, and empty areas. Based on the Model described in Wood, A. J., G. J. Ackland, J. G. Dyke, H. T. P. Williams, and T. M. Lenton (2008), Daisyworld: A review, Rev. Geophys., 46.

fire-average

Fire in the forest example using multiple runs repeateated strategy.

moving-agents

Example that uses MultipleRuns to compute wow many cells agents moving randomly can reach. It uses a model that starts with a given number of agents randomly distributed in space and runs a small number of steps. The output shows a logistic growth of cells where at least one agent has passed during each simulation. Note that the curve sometimes has a negative derivative. As we increase the initial number of agents, sometimes the number of covered cells diminishes due to randomness.

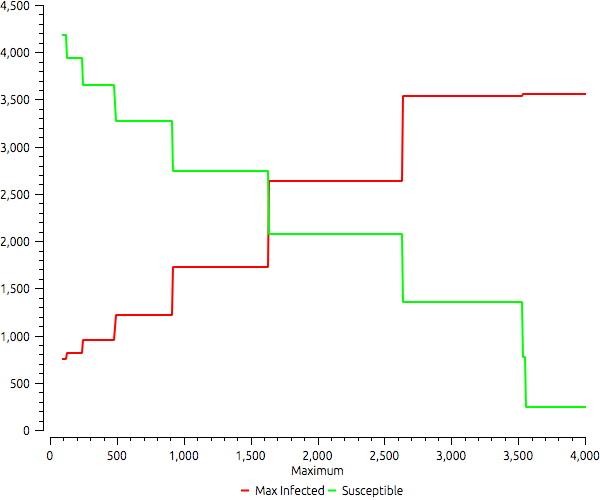

sir-mr-campaign

Multiple simulations of a Susceptible-Infected-Recovered (SIR) model with a public campaign. The campaign asks the population to stop leaving home, which reduces the number of contacts by half. The example shows the outcomes given different thresholds to start the campaign.

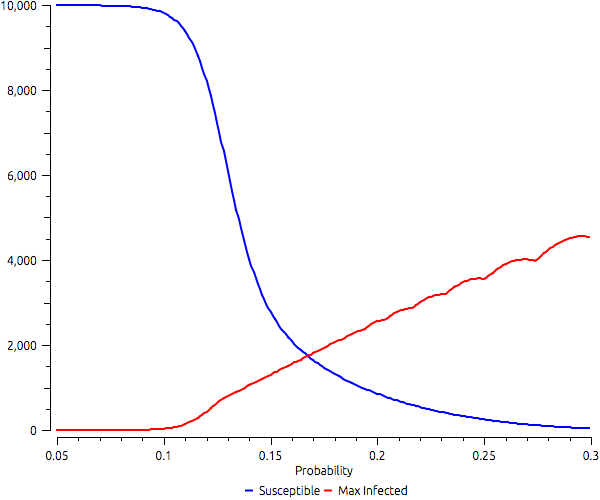

sir-mr-probability

Investigating the probability of infection in a Susceptible-Infected-Recovered (SIR) model. The example shows how susceptibles and the maximum number of infected varies according to the probability of infection.

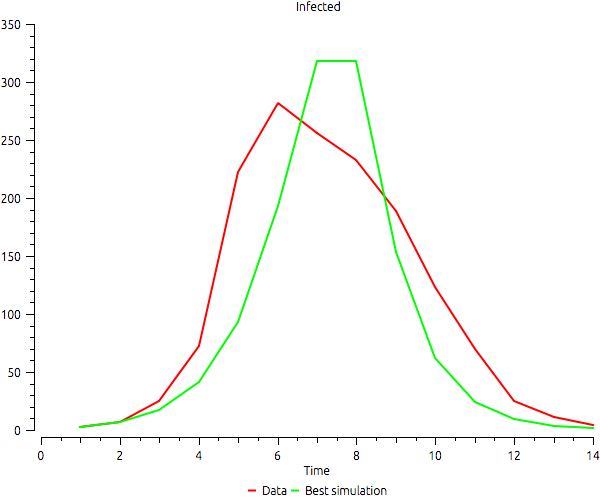

sir-samde-fit

Infection example using SaMDE, simulates an infection spreading inside a school.

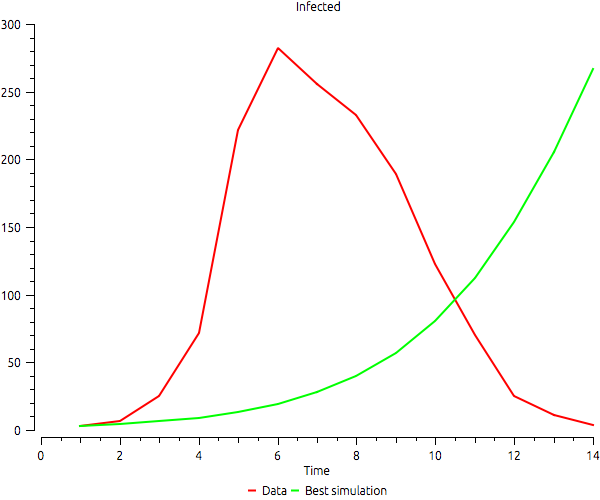

sir-samde-max-infected

An example of a bad calibration. It uses a SIR model and calibrates it with real data using only the difference between the maximum number of infected as error. The calibration is perfect, but the time when the maximum is reached is completely different. The data available shows the maximum in time 6, but the fittest configuration of the model reaches the maximum only in the end of the simulation.
