Projects

arapiuns.tview

Automatically created TerraView project file from arapiuns.lua.
Layer File Description
"trajectory" arapiuns_traj.shp 1 line.
"villages" AllCmmTab_210316OK.shp 49 points.

brazil.tview

Automatically created TerraView project file from brazil.lua.
Layer File Description
"biomes" br_biomes.shp 6 polygons.
"states" br_states.shp 27 polygons.

caragua.tview

Automatically created TerraView project file from caragua.lua.
Layer File Description
"baseline" simulation2025_baseline.shp 216 polygons.
"less" simulation2025_lessgrowth.shp 136 polygons.
"limit" caragua.shp 1 polygon.
"plus" simulation2025_plusgrowth.shp 134 polygons.
"poorer" simulation2025_poorer.shp 104 polygons.
"real" caragua_classes2010_regioes.shp 201 polygons.
"regions" regions.shp 3 polygons.
"richer" simulation2025_richer_final.shp 134 polygons.
"use" occupational2010.shp 276 polygons.

emas.tview

Automatically created TerraView project file from emas.lua.
Layer File Description
"cells" emas.shp 5514 cells (polygons) with resolution 500 built from layer "limit".
"firebreak" emas-firebreak.shp 45 lines.
"limit" emas-limit.shp 1 polygon.
"river" emas-river.shp 208 lines.

sp.tview

Automatically created TerraView project file from sp.lua.
Layer File Description
"municipalities" sp_municipalities.shp 740 polygons.

temporal-data.tview

Automatically created TerraView project file from temporal-data.lua.
Layer File Description
"data" temporal-data.shp 9 polygons.

Data
AllCmmTab_210316OK.shp The riverine communities at Arapiuns (PA).
arapiuns_traj.shp Route on the Arapiuns River.
br_biomes.shp Brazilian biomes.
br_states.shp Brazilian states.
caragua.shp Caragua municipality, in Sao Paulo State, Brazil.

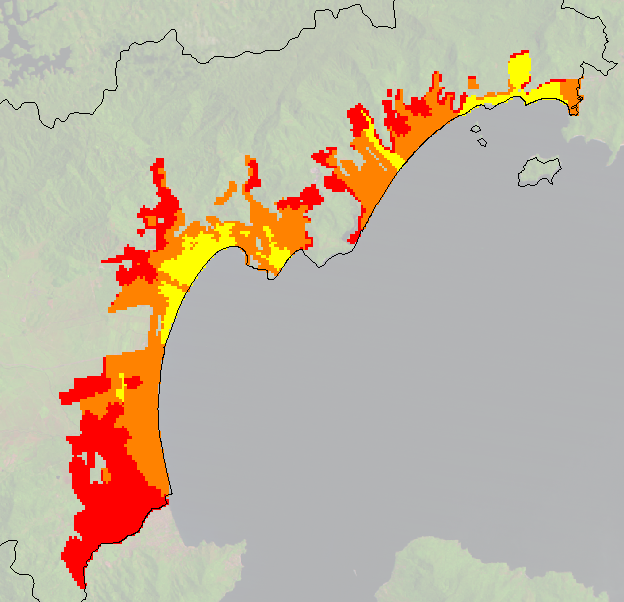

caragua_classes2010_regioes.shp Social Classe 2010 Real.
caragua_classes2010_regioes.tif Social Classe 2010 Real.
emas.shp Automatically created file in project "emas.tview".

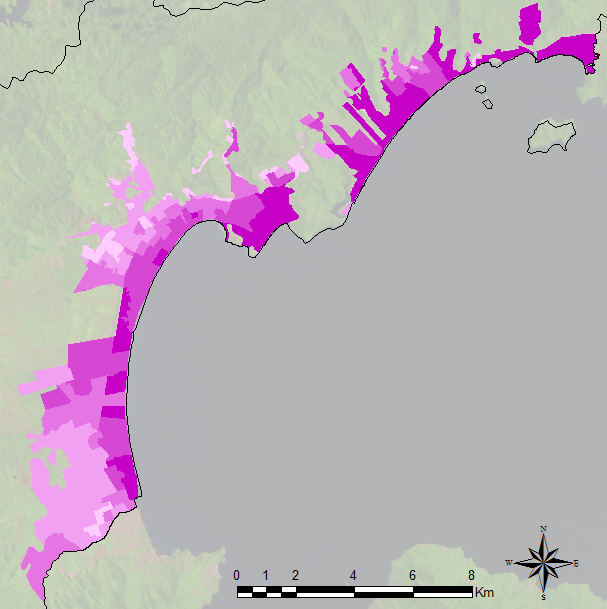

occupational2010.shp Occupational Classes (IBGE, 2010).

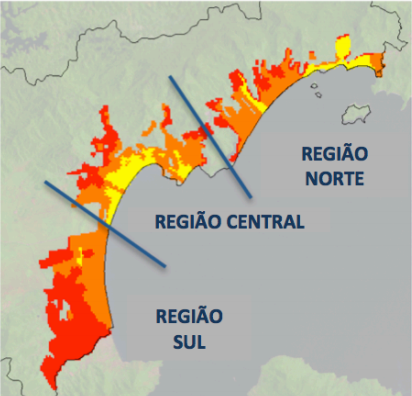

regions.shp Caragua municipality divided into three regions.

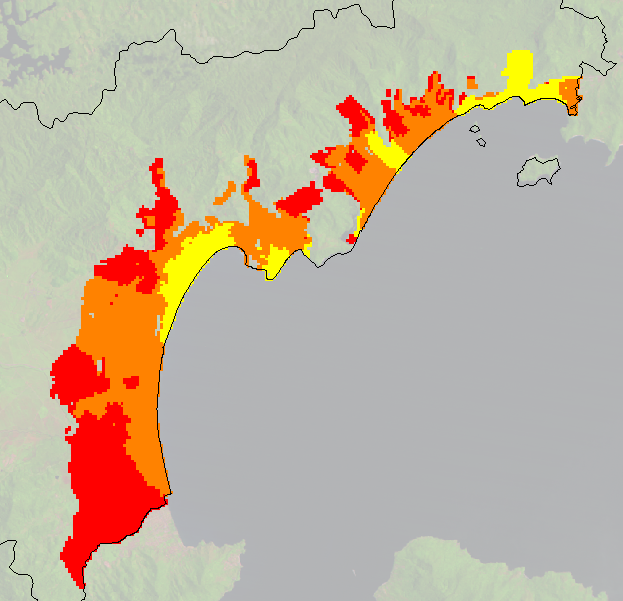

simulation2025_baseline.shp Baseline simulation for 2025.

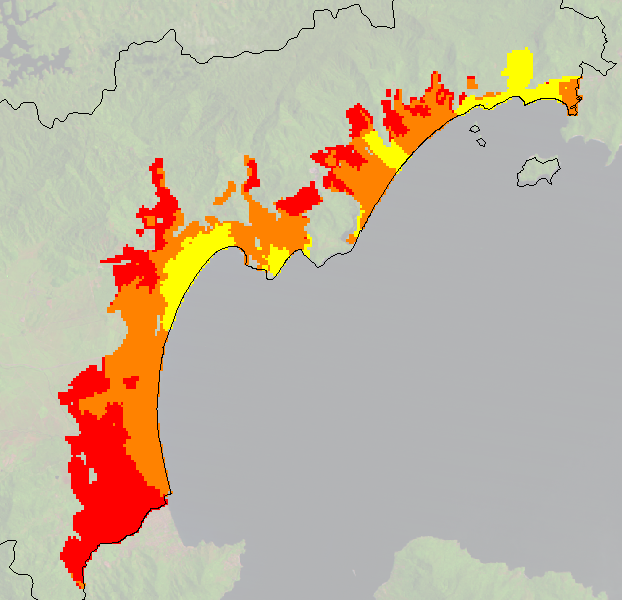

simulation2025_lessgrowth.shp Less growth simulation in 2025.

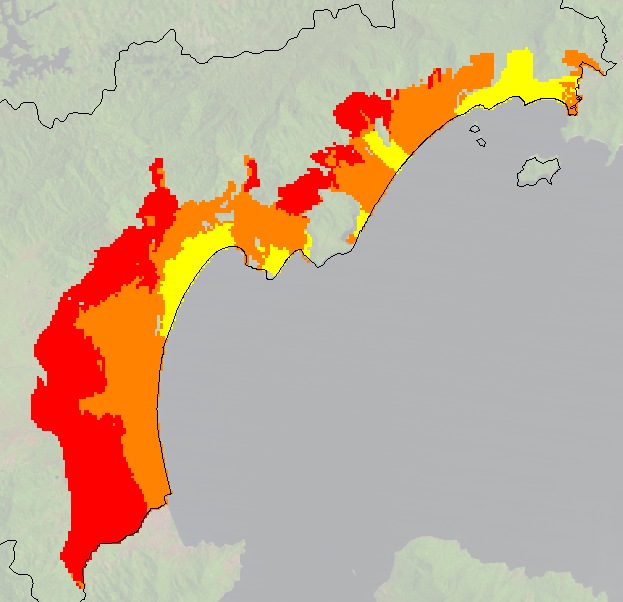

simulation2025_plusgrowth.shp Plus growth simulation in 2025.

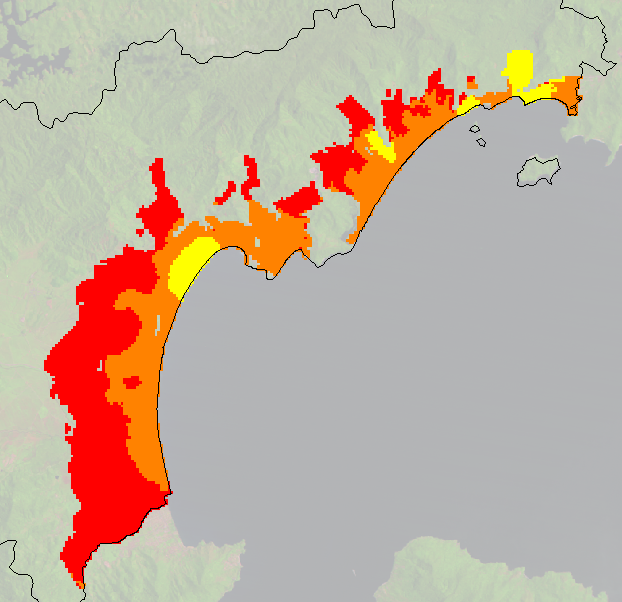

simulation2025_poorer.shp Poorer people in Caragua in 2025.

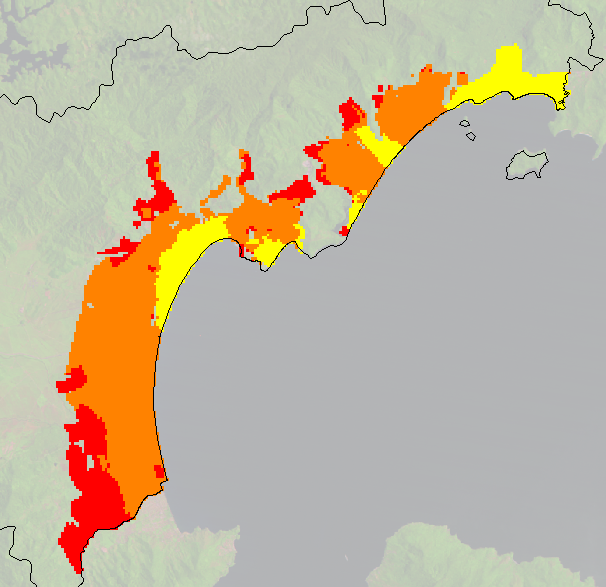

simulation2025_richer_final.shp Richer people in Caragua in 2025.
sp_municipalities.shp Sao Paulo municipalities.
temporal-data.shp Test of temporal data to create graphic and table.
uc_federais_2001.shp Conservation units of Brazil.
uc_federais_2009.shp Conservation units of Brazil.
uc_federais_2016.shp Conservation units of Brazil.
vegtype_2000_5880.tif Vegetation Type 2000.

Directory
arapiuns Photos of several riverine settlements.
biomes A set of images related to Brazilian biomes collected from the Internet.

AllCmmTab_210316OK.shp

The riverine communities at Arapiuns (PA).

Attribute Type Description
ACAI number Acai.
AGUA number Water.
ARROZ number Rice.
BFAM number Bolsa Familia.
CACA number Hunting.
CASTANHA number Chestnut.
CFUT number Soccer field.
CMM2 string Name of riverine community.
EJA number The schools of riverine settlements at Arapiuns.
ENERGIA number Energy.
ENSFUND2 number The schools of riverine settlements at Arapiuns.
ENSINF number The schools of riverine settlements at Arapiuns.
FRUTAS number Fruits.
GADO number Cattle.
ICON string The name of marker icon.
IDDCM number Age of the community.
IGREJAS number Church.
INST number Governmental institutions.
LIXO number Garbage collection.
MAND number Manioc.
MANT number Where people usually buy food.
MERENDA number Lunch at schools.
MINERACAO number Mining.
NASSOC number Local institutions.
NPES number Population of the community.
Nome string Name of riverine community.
ORELHAO number Telephone.
PESCA number Fischery.
PSAU number Health center of riverine settlements at Arapiuns.
SALE number Saude e Alegria NGO.
UC number Conservation Unit.

arapiuns_traj.shp

Route on the Arapiuns River.

br_biomes.shp

Brazilian biomes.

Attribute Type Description
cover number Percentage of Brazil's area covered by the biome.
link string Link to a Wikipedia page with the description of the biome.
name string Name of the biome.

br_states.shp

Brazilian states.

Attribute Type Description
NOMEUF2 string Name of the state.
SIGLAUF3 string An acronym for the state.

caragua.shp

Caragua municipality, in Sao Paulo State, Brazil.

Attribute Type Description
idh number HDI indicators of Caraguatatuba.
name string Data name.
pib number Gross Domestic Product (GDP) of Caraguatatuba.
population number Population of Caraguatatuba.

caragua_classes2010_regioes.shp

Social Classe 2010 Real.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

caragua_classes2010_regioes.tif

Social Classe 2010 Real.

Band Dummy Type Description
0 65535 number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

emas.shp

Automatically created file with 5514 cells (polygons) with resolution 500 built from layer "limit", in project emas.tview.

Attribute Type Description
col number Cell's column.
firebreak number Operation presence from layer "firebreak".
id string Unique identifier (internal value).
river number Operation presence from layer "river".
row number Cell's row.

occupational2010.shp

Occupational Classes (IBGE, 2010).

Attribute Type Description
uso number The percentage of houses and apartments inside such areas that is typically used in summer vacations and holidays.

regions.shp

Caragua municipality divided into three regions.

Attribute Type Description
name string Regions of Caraguatatuba, North (1), Central (2) and South (3).

simulation2025_baseline.shp

Baseline simulation for 2025.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

simulation2025_lessgrowth.shp

Less growth simulation in 2025.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

simulation2025_plusgrowth.shp

Plus growth simulation in 2025.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

simulation2025_poorer.shp

Poorer people in Caragua in 2025.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

simulation2025_richer_final.shp

Richer people in Caragua in 2025.

Attribute Type Description
classe number Categorizes the social conditions of households in Caraguatatuba using classes A (3), B (2) or C (1).

sp_municipalities.shp

Sao Paulo municipalities.

Attribute Type Description
id number Unique identifier.
nome string Name of the city.
pib number Gross Domestic Product (GDP).
populacao number Population size.
uf string States of Brazil.

temporal-data.shp

Test of temporal data to create graphic and table.

Attribute Type Description
AGB3rdM70, BGB3rdM70 number Temporal data test bloc 7.
B2nd, b2_agb, AGB3rd, BGB3rd, DW3rd, Litter3rd, soma_dg number Test data bloc 2.
Lit3rdM70, DW3rdM70, AGB3M70cor number Test data bloc 5.
Shape_Leng, Shape_Area number Temporal data test bloc 10.
averAGBDeg, b12_3rdInv number Test data bloc 6.
b12 number Test data b12.
b3_agb, B2ndM100 number Test data bloc 3.
b3_perc1, b3_perc2, b3_perc3 number Temporal data test bloc 5.
col number Column.
col_1 number Identifier col 1.
d number Identifier d.
d_area16, d_inita01, d_forest number Temporal data test bloc 6.
d_inita, d_area02, d_area03, d_area04, d_area05, d_area06, d_area07, d_area08, d_area09, d_area10, d_area11, d_area12, d_area13, d_area14, d_area15 number Temporal data test bloc 2.
d_inita05, b4_agb, O, soma_d number Test data bloc 4.
deterCR number Deter.
dg_darea06, dg_darea07, dg_darea08, dg_darea09, dg_darea10, dg_darea11, dg_darea12 number Temporal data test bloc 3.
dg_darea13, dg_darea14 number Temporal data test bloc 4.
dg_darea15, dg_darea16, dg_darea17, dg_darea18, dg_darea19 number Temporal data test bloc 9.
f number Identifier f.
f16, d16, ag_slope_1, e_roads, e_proads, e_railway, e_connmkt, e_hidro, e_beef, e_wood, e_soysug, e_min, e_urban100, as_pland_s, as_pland_m, as_pland_b, c_sett11, c_nsett11, c_hidreopc, c_ucpi12, c_ussapa12 number Temporal data test bloc 1.
for06_test, for06_area number Temporal data test bloc 8.
forest02 number Forest 02.
forest06 number Forest 06.
id string Identifying of label.
id_1 string Identifier id 1.
log_CrRaso, log_Degrad, log_Regen number Temporal data test bloc 13.
log_pDG06, dAcc_ant, pDG06, TIndigena, area_disp number Test data bloc 7.
mcwd06, mcwd07, mcwd08, mcwd09, mcwd10, mcwd11, mcwd12, mcwd13, mcwd14, mcwd15, mcwd16 number Temporal data test bloc 11.
min_mcwd number Identifier MCWD.
outros number outhers.
pTrjCrRaso, pTrjDegrad, pTrjRegen number Temporal data test bloc 12.
p19class27, d_recente, CAR_vazio, f_recente, e_urban10, drec, frec, OBJECTID, Join_Cou_1, TARGET_F_1 number Test data bloc 1.
row number Row.
row_1 number Identifier row_1.

uc_federais_2001.shp

Conservation units of Brazil.

Attribute Type Description
CoordRegio string Region coordinates.
IdUnidade string Unit id.
SiglaGrupo string Group initials.
UF string States of Brazil.
administra string Administration.
anoCriacao number Creation year.
areaHa number Area.
atoLegal string Legal.
biomaCRL string Biome CRL.
biomaIBGE string Biome IBGE.
categoria string Category.
codCat number Code.
codUso number Code.
codigoCnuc string Unique identifier.
geometriaA string Geometry.
municipios string Municipalities.
nome string Name of the unit.
perimetroM number Perimeter.
sigla string Initials.
tipo string Type.

uc_federais_2009.shp

Conservation units of Brazil.

Attribute Type Description
CoordRegio string Region coordinates.
IdUnidade string Unit id.
SiglaGrupo string Group initials.
UF string States of Brazil.
administra string Administration.
anoCriacao number Creation year.
areaHa number Area.
atoLegal string Legal.
biomaCRL string Biome CRL.
biomaIBGE string Biome IBGE.
categoria string Category.
codCat number Code.
codUso number Code.
codigoCnuc string Unique identifier.
geometriaA string Geometry.
municipios string Municipalities.
nome string Name of the unit.
perimetroM number Perimeter.
sigla string Initials.
tipo string Type.

uc_federais_2016.shp

Conservation units of Brazil.

Attribute Type Description
CoordRegio string Region coordinates.
IdUnidade string Unit id.
SiglaGrupo string Group initials.
UF string States of Brazil.
administra string Administration.
anoCriacao number Creation year.
areaHa number Area.
atoLegal string Legal.
biomaCRL string Biome CRL.
biomaIBGE string Biome IBGE.
categoria string Category.
codCat number Code.
codUso number Code.
codigoCnuc string Unique identifier.
geometriaA string Geometry.
municipios string Municipalities.
nome string Name of the unit.
perimetroM number Perimeter.
sigla string Initials.
tipo string Type.

vegtype_2000_5880.tif

Vegetation Type 2000.

Band Dummy Type Description
0 -999000000 number Vegetation classes.

arapiuns

Photos of several riverine settlements.

  • Files: 49
  • Extensions: jpg
  • Source: Escada et. al (2013) Infraestrutura, Serviços e Conectividade das Comunidades Ribeirinhas do Arapiuns, PA. Technical report, INPE.

biomes

A set of images related to Brazilian biomes collected from the Internet.

  • Files: 6
  • Extensions: jpg
  • Source: Google and Wikipedia
